G.I. CEILING
FRAMES & CHANNELS
All Galvanised Iron (G.I.) Ceiling and Partition Frames and Channels are with Al-Zn coating of 150 gsm which provides superior corrosion resistance. Detailed working on each bend and curve of sections to achieve error free manufacturing, and desired performance.
G.I. CEILING FRAMES & CHANNELS
G.I. Ceiling Framing System

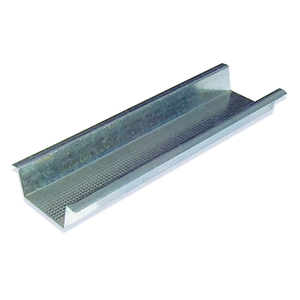

Ceiling Section / Furring Channel
Application: The main supporting section to fix plasterboard
| SPECIFICATIONS | |
|---|---|
| Material | Galvanised Iron (G.I.) |
| Manufacturing Technique | Roll Formed |
| Length (ft) | 8 / 12 |
| Base Metal Thickness (BMT in mm) | Weight of 8ft Profile (gms) | Weight of 12ft Profile (gms) |
|---|---|---|
| 0.45 | 500 | 1080 |
| 0.50 | 600 | 1200 |
| 0.55 | 700 | 1320 |
| Dimensions (mm) | 54 x 12 x 34 x 2440 | 54 x 12 x 34 x 3660 |

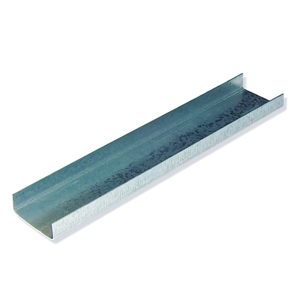

Intermediate Channel
Application: Primary section to support the ceiling section
| SPECIFICATIONS | |
|---|---|
| Material | Galvanised Iron (G.I.) |
| Manufacturing Technique | Roll Formed |
| Length (ft) | 8 / 12 |
| Base Metal Thickness (BMT in mm) | Weight of 8ft Profile (gms) | Weight of 12ft Profile (gms) |
|---|---|---|
| 0.45 | 500 | 1080 |
| 0.50 | 600 | 1200 |
| 0.55 | 700 | 1320 |
| Dimensions (mm) | 18 x 40 x 18 x 2440 | 18 x 40 x 18 x 3660 |

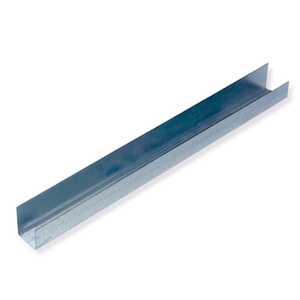

Perimeter Channel
Application: Fix around walls/partitions
| SPECIFICATIONS | |
|---|---|
| Material | Galvanised Iron (G.I.) |
| Manufacturing Technique | Roll Formed |
| Length (ft) | 8 / 12 |
| Base Metal Thickness (BMT in mm) | Weight of 8ft Profile (gms) | Weight of 12ft Profile (gms) |
|---|---|---|
| 0.45 | 500 | 1080 |
| 0.50 | 600 | 1200 |
| 0.55 | 700 | 1320 |
| Dimensions (mm) | 22 x 28 x 32 x 2440 | 22 x 28 x 32 x 3660 |
Ceiling Angle
Application: To provide suspensions from the structural soffit
| SPECIFICATIONS | |
|---|---|
| Material | Galvanised Iron (G.I.) |
| Manufacturing Technique | Roll Formed |
| Length (ft) | 8 / 12 |
| Base Metal Thickness (BMT in mm) | Weight of 8ft Profile (gms) | Weight of 12ft Profile (gms) |
|---|---|---|
| 0.45 | 225 | 400 |
| 0.50 | 260 | 480 |
| 0.55 | 320 | 550 |
| Dimensions (mm) | 20 x 20 x 2440 | 20 x 20 x 3660 |
