ULTRA STEEL CEILING
FRAMES & CHANNELS
Ultra Steel is manufactured through a cold rolled pre-forming process that locally work-hardens the base material, and provides great strength to the false ceiling and drywall systems. Detailed working on each bend and curve of sections to achieve error free manufacturing, and desired performance.
ULTRA STEEL CEILING FRAMES & CHANNELS
Ultra Steel Ceiling Framing System

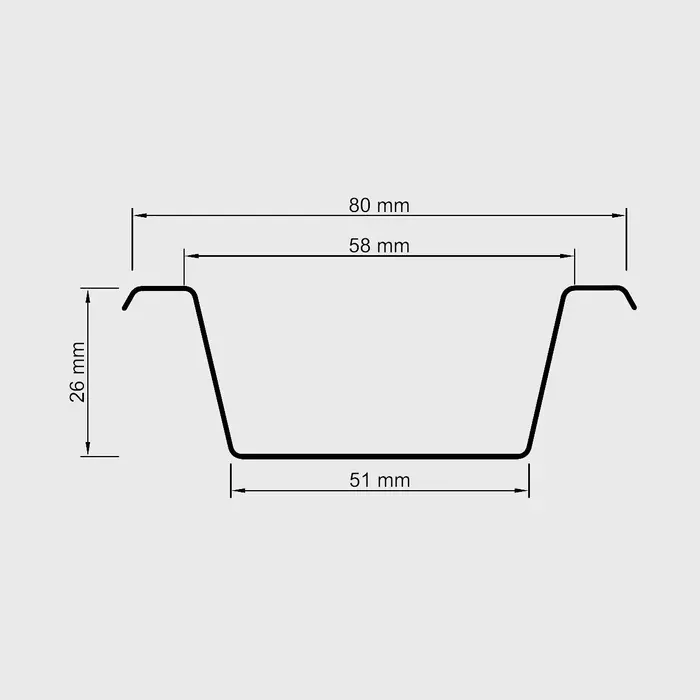

Ceiling Section / Furring Channel
Application: The main supporting section to fix plasterboard
| SPECIFICATIONS | |
|---|---|
| Material | Ultra Steel |
| Manufacturing Technique | Roll Formed |
| Length | 12 ft |
| Base Metal Thickness (BMT in mm) | Profile Weight (gms) |
|---|---|
| 0.45 | 1060 |
| 0.50 | 1170 |
| 0.55 | 1250 |
| Dimensions (mm) | 80 x 26 x 51 x 3660 |

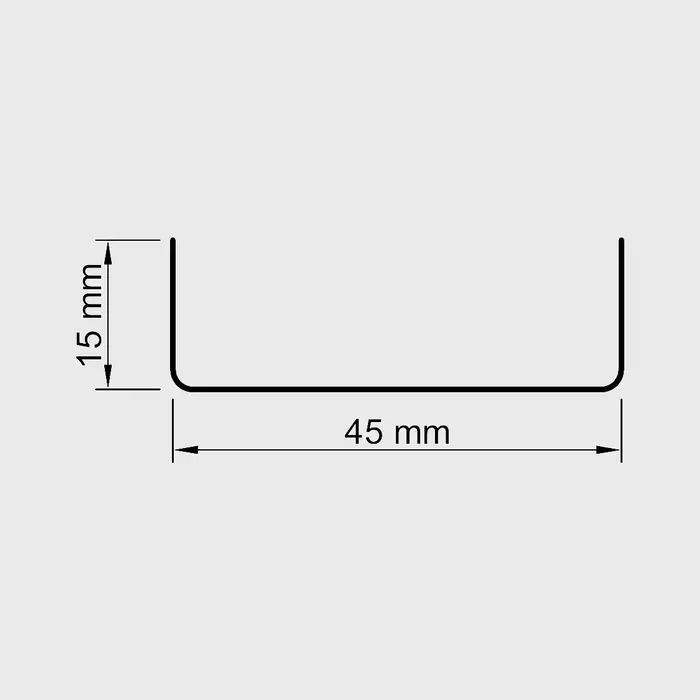

Intermediate Channel
Application: Primary section to support the ceiling section
| SPECIFICATIONS | |
|---|---|
| Material | Ultra Steel |
| Manufacturing Technique | Roll Formed |
| Length | 12 ft |
| Base Metal Thickness (BMT in mm) | Profile Weight (gms) |
|---|---|
| 0.45 | 1060 |
| 0.50 | 1170 |
| 0.55 | 1250 |
| Dimensions (mm) | 15 x 45 x 15 x 3660 |
Perimeter Channel
Application: Fix around walls/partitions
| SPECIFICATIONS | |
|---|---|
| Material | Ultra Steel |
| Manufacturing Technique | Roll Formed |
| Length | 12 ft |
| Base Metal Thickness (BMT in mm) | Profile Weight (gms) |
|---|---|
| 0.45 | 950 |
| 0.50 | 1060 |
| 0.55 | 1140 |
| Dimensions (mm) | 22 x 28 x 32 x 3660 |
Ceiling Angle
Application: To provide suspensions from the structural soffit
| SPECIFICATIONS | |
|---|---|
| Material | Ultra Steel |
| Manufacturing Technique | Roll Formed |
| Length | 12 ft |
| Base Metal Thickness (BMT in mm) | Profile Weight (gms) |
|---|---|
| 0.45 | 710 |
| 0.50 | 830 |
| 0.55 | 960 |
| Dimensions (mm) | 20 x 20 x 3660 |
